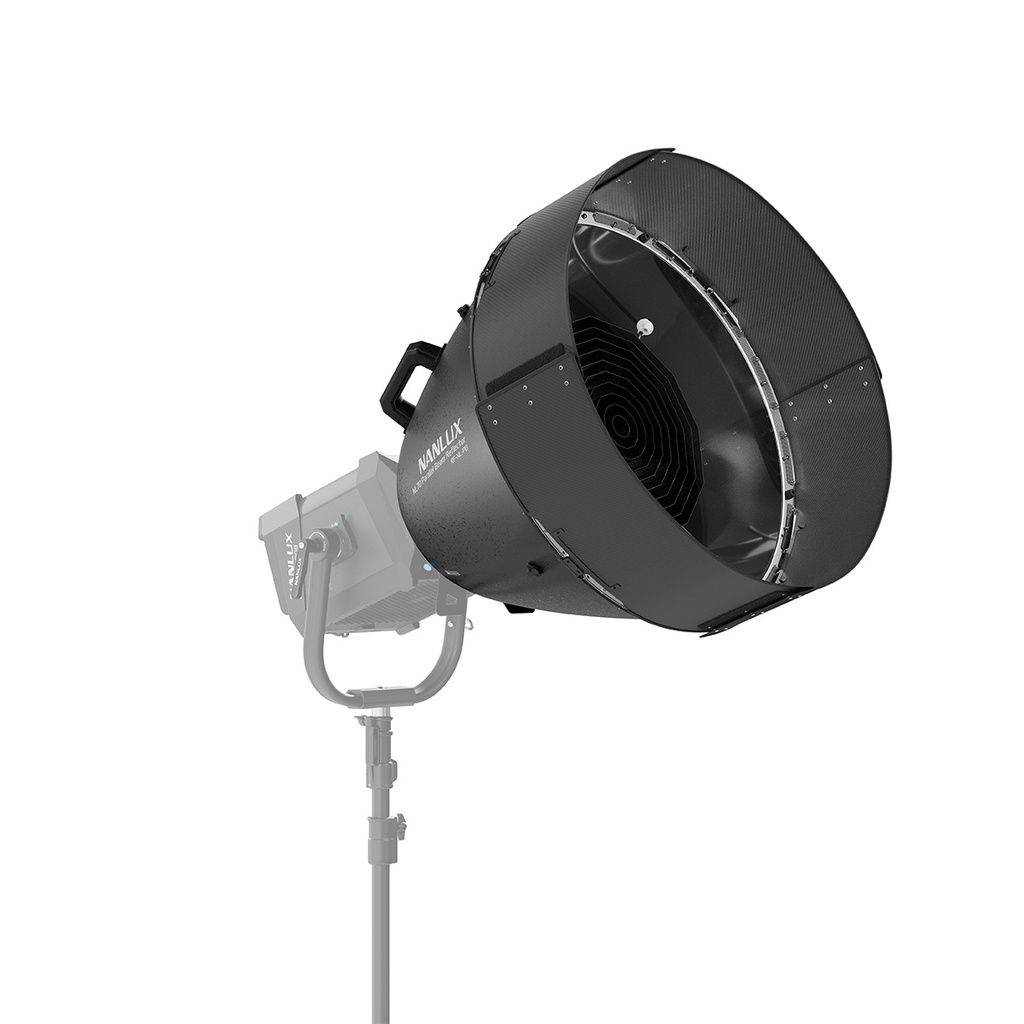

Nanlux NL70 Parallel Beam Reflector

The NL70 (RF-NL-PB)is a professional lighting modifier with
a well-defined long-throw beam and minimal light loss.
It features a highly optimized optical design that
works perfectly with the Nanlux Evoke 2400B and other
Evoke series NL mount light fixtures,
making it an excellent solution for shooting scenarios
that require a high-intensity parallel beam,
natural light with low light decay, or efficient light for
use with reflectors.

Innovative Light Shaping

The NL70 parallel beam reflector features a beam angle of 6°.
It is fitted with an internal grid design, and when combined with its snoot, it effectively reduces spill light,
ensuring a focused and even light output. When used with compatible Evoke series light fixtures,
it creates a cinema-grade parallel light beam.

22420 lux@10m (5600K)

5749 lux@20m (5600K)

When mounted on the Evoke 2400B, the light output
can be increased by up to 21 times compared to using
the light alone. This combination, with its high efficiency
and parallel beam features, is outstanding for long-distance
lighting scenarios. At a distance of 10 meters, the illuminance
can reach 22,420 lux (5600K), effortlessly meeting the lighting
demands of large-scale productions and outdoor projects.

Smart Design, Minimal Weight

The NL70 parallel beam reflector is made from lightweight materials
and achieves exceptional weight reduction through optimized structural design.
With a diameter of 720mm/28.35", it weighs only 9.37kg/20.66lb, making transport,
handling, and setup easy, even by a single person.

Technical Data

• Model : RF-NL-PB
• Beam Angle : 6°
• Compatible Mount : NL Mount
• Compatible Product : Evoke 900C / 1200 / 1200B / 2400B
• Product Weight : NL Mount Parallel Beam Reflector: 9.37kg / 20.66lb
  Carrying Bag: 9.22kg / 20.33lb
• Product Size : Reflector with snoot retracted: φ774 x 499mm / φ30.5 x 19.6"
  Reflector with snoot installed : φ774 x 710.8mm / φ30.5 x 28.0"
  Carrying Bag: φ860 x 550mm / φ33.9 x 21.7"
• NL70 Parallel Beam Reflector x 1


• Plastic Protective Cover x 1


• User Manual x 1


• Carrying Bag x 1

Illumination (lux / fc)
